| TANK CAPACITY | ||||
| 1000 LT | 1200 LT |
| 1000 LT DIMENSIONS | Width | Height | Depth | Weight |
| 350 CM | 235 CM | 160 CM | 433 KG |
| TECHNICAL SPECIFICATIONS | |
| Tank Material | Plastic (Polyethylene) |
| Pump Model | Annovi Reverberi AR 145 BP |
| Pump Pressure | 20 BAR |
| Pump Flow Rate | 145 L/min |
| Control Unit | Annovi Reverberi UCM - 5 |
| Operating Speed | 540 rpm |
| Nozzle Type | Braglia T-Jet 4-L |
| Nozzle Quantity | 25 (12m) - 31 (15m) - 37 (18m) |
| Arm Type | Folding Profile Arm |
| Hydraulic Lift | Available |
| Working Width | 12/15/18 Meters |
| Min. Tractor Power | 70 HP |

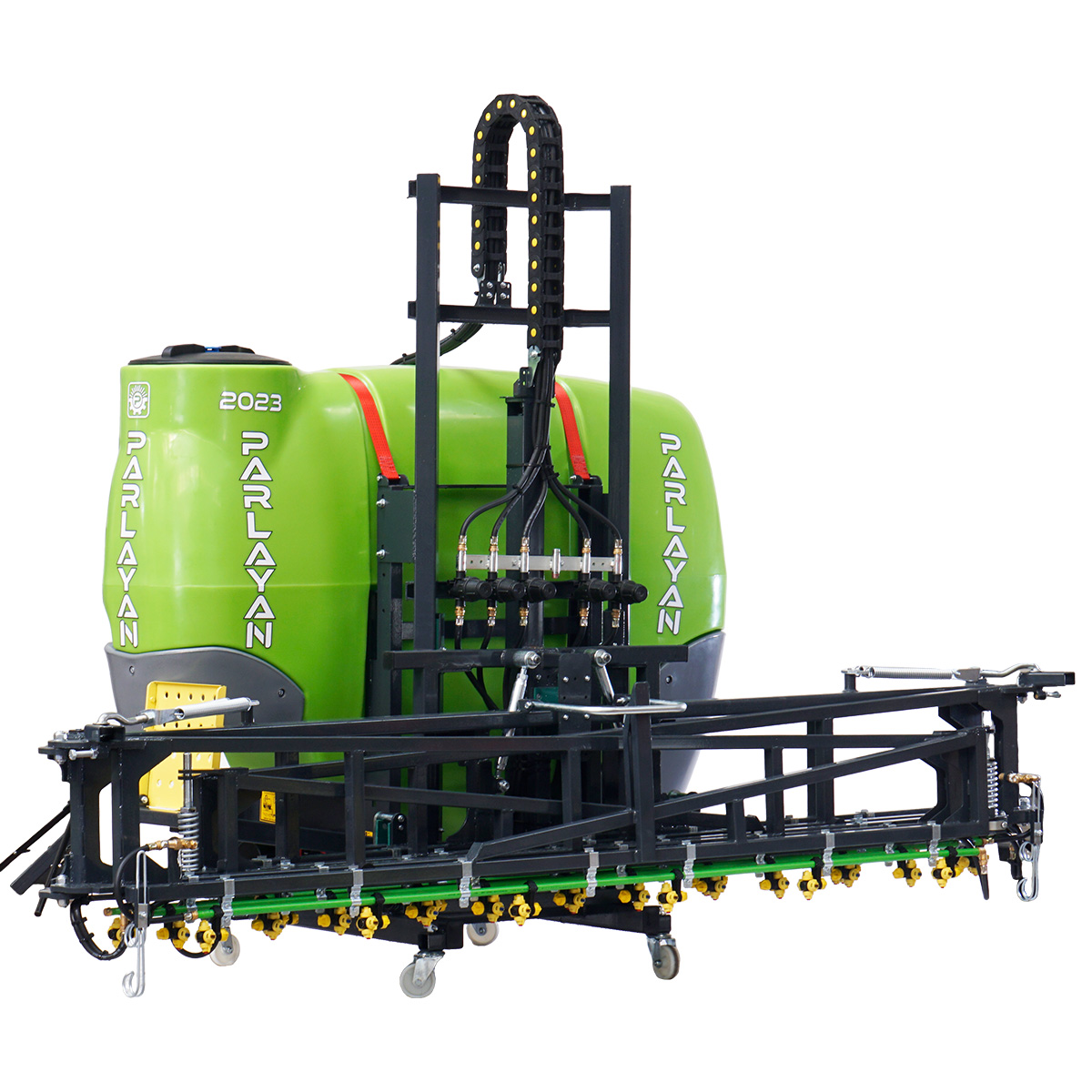

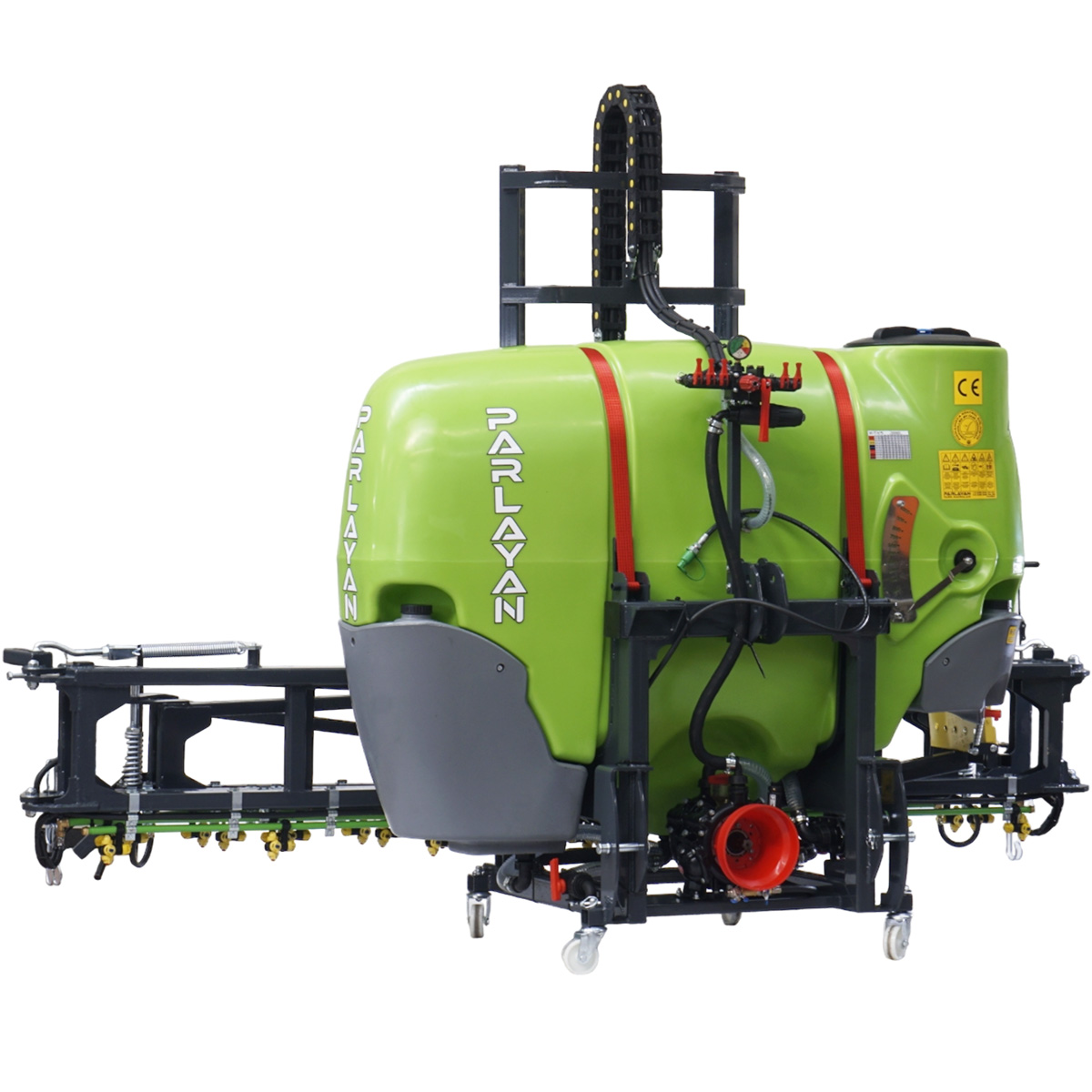

The machine provides the flexibility of different arm widths: 12, 15, and 18 meters, allowing for high performance in pesticide spraying operations and saving you time. It is equipped with 37 nozzles to ensure efficient and effective spraying.
